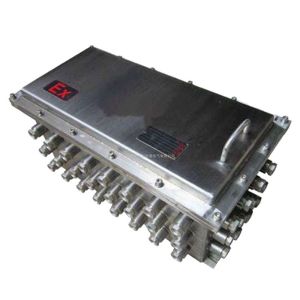

BXM(D) Series Explosion Proof Panel Anti-Corrosion Electrical
Control Board
Description:
1. Explosion proof control panel contains high-breaking miniature
circuit breaker or plastic circuit breaker, AC vacuum contactor,
motor protector, voltmeter and other components, with overload,
short circuit, under voltage, phase loss, leakage and other
protection functions, can also follow Install some other components
at the customer's request;
2, can be steel pipe or cable wiring.
3. WIth overload, short circuit protection, and leakage protection
function can be made as per request
4. It is mainly composed of cabinet, automatic control system, air
distribution system, alarm system and power distribution system;
the cabinet consists of positive pressure chamber and auxiliary
chamber, sub-chamber is equipped with automatic control system,
alarm system and user's incoming cable; The user's power
distribution system components are installed in the pressure
chamber;
5. Can be customized according to customer requirements, such as
the installation of surge protector, ammeter, voltmeter, etc., can
be equipped with a padlock metal handle.
6, in line with GB3836-2000, IEC60079 standard requirements.
7. Various ordinary measuring instruments, analytical instruments,
display instruments, monitors, microcomputer touch screens,
high-power inverters and ordinary electrical components can be
installed according to user requirements, and the electrical
components inside the user are basically not restricted;
Technical parameters:
1. Implementation standard: GB3836-2000 IEC60079
2. Explosion-proof signs: EXedIICT6, DIPA20TA, T6
3. Rated voltage: AC380V/220V/50HZ
4. Rated current: 10A
5. Protection level: IP54, IP65
6. Anti-corrosion grade: WF2
7. Use category: AC-3 AC-4
8. Introduction port specification: G3/4 "-G1 1/2"
9. Cable specifications: Ф9mm-Ф25mm
10. Built-in components: explosion-proof button BA8050,
explosion-proof indicator BD8050, this series of products is
generally configured with red stop, green start; explosion-proof
switch BK8050 series, explosion-proof electric meter CP series.
Applications:
1. Can be used in hazardous areas: Zone 1 and Zone 2 .
2. Can be used in explosive gas atmospheres of Category IIA and II
B IIC where the temperature classification is T6.
3. Two type of Ex d(IIB) and complex(IIC).
4. Flammable dust atmosphere.
5. Widely using in the fields of oil, chemical industry ,
spaceflight ,war industry and so on.
Our service:
1.Low MOQ is available
2.Short Lead time
3.Free circuit diagram design
4.Promptly reply within 24 hours
5.Reliable after sales service
6.3 years warranty service
7.All product tested before shipping
8.OEM is accepted
